Electrical Conduit
Quick Quotes for Reiku / Drossbach Products

Standard and custom connectors & connector accessories:
-Electrical connector
-Power connector
-Circular connector
-Push pull connector
-Automotive electrical connector
-etc...

Aero Electric Connectors
Sunbank Connectors & Accessories
Glenair Connectors & Accessories
Amphenol Connectors - 97 Series
Bendix Pygmy Connectors
Electro Adapter Connectors & Accessories
Deutsch Connectors
ITT Cannon Connectors

Over 40 years of experience as a military & industrial connector manufacturer and distributor.

Email or Quote

Ordnance Connectors and Accessories

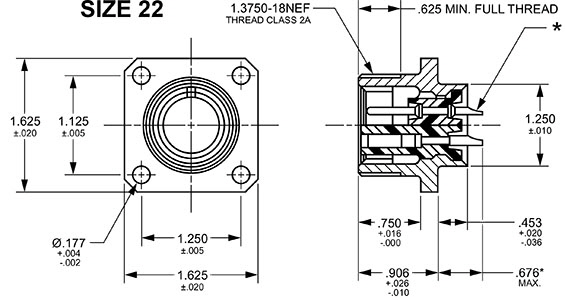

Box Mounting Receptacle
Box Mounting Receptacle

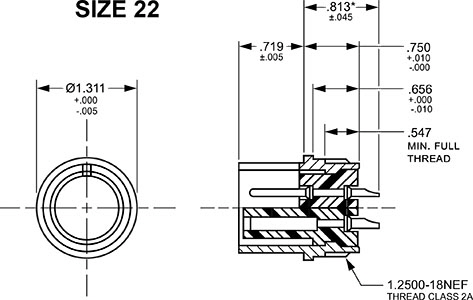

Straight Plug Body
Straight Plug Body

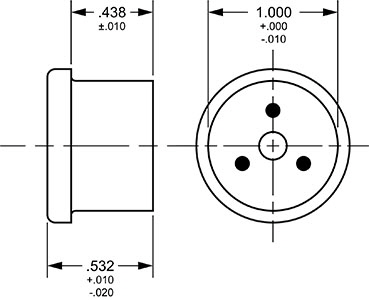

Ordnance Grommets
Ordanace Grommets

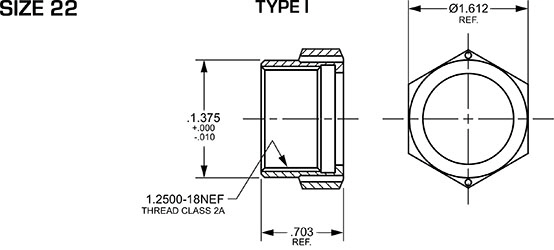

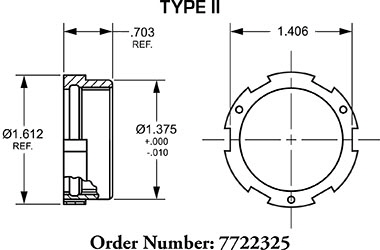

Ordnance Coupling Nuts

The three coupling nut styles illustrated represent one of the  types used to complete an Ordnance Assembly. In all cases; they must  be assembled to its respective assembly, prior to soldering operations.


































Ordanace Couple Nuts 1

Ordanace Couple Nuts 2

Ordanace Couple Nuts 3

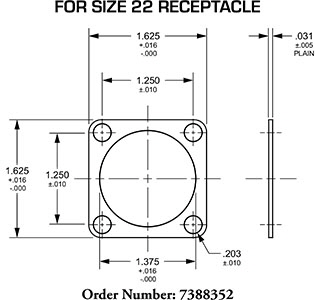

Gaskets

The Crown Flat Flange Gasket of synthetic rubber material is provided to further complete the moisture-proofing and pressure sealing features of Crown connectors. It is for use with flange mounting receptacles.

Gaskets





Receptacle Protection Caps

This assembly provides for a moisture-proof, dust proof sealing for the  receptacle when unmated.  Chain and eyelet provide permanent  attachment under the mounting bolt of the receptacle assembly.

Receptacle Protection Caps





Hi-Tension Receptacles

High Tension Receptacles

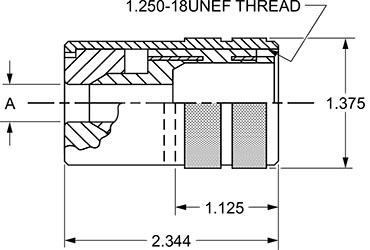

Environmental Adapter

The CR1000 Adapter is designed as a functional equivalent to the  SM-C-339543. This new design has incorporated the six component parts  and eight groups of the Signal Corp. Adapter into only three component  parts and three groups. Some advantages offered by the CR1000 are:  reductions in cost, overall length, weight and a reduction in the number of parts that are subject to corrosion.

Environmental Adapter
